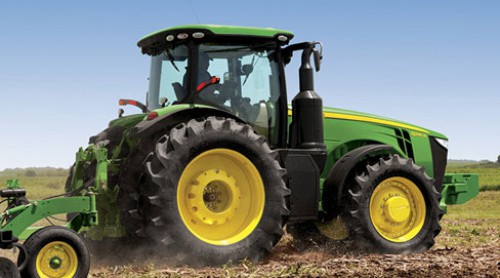

John Deere 8370R

John Deere 8370R for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

8R/8RT Series



  • 370 Engine hp
  • John Deere PowerTech™ 9.0L PSS
  • Choice of 16-speed PowerShift, e23™ PowerShift, or Infinitely Variable Transmission (IVT™)
  • MFWD, or Independent Link Suspension (ILS™)
Manufacturer John Deere
Model 8370R (MY2014)
Official Test
Nebraska Test number TBD Nebraska Test
Engine
Manufacturer John Deere
Engine family 9.0L: EJDXL09.0301
Aspiration Dual turbochargers, variable geometry turbo with fixed geometry turbo in series
Cylinders/Displacement, cu. in. (L) 6 cylinders/9.0 L
  549 cu in.
Cylinder Liners Wet
Fuel tank capacity, US Gal. (L) (Open; Cab) ---
Standard With G47/48 tires: 645 L
  170.4 U.S. gal.
  With G49 tires: 686 L
  181.2 U.S. gal.
Optional ---
Underhood muffler ---
Performance
Advertised PTO hp (kW) @ Rated rpm At 2100 per SAE: 233 kW
  313 hp
Official PTO hp (kW) @ Rated rpm ---
@ Standard PTO @ Eng rpm ---
Maximum @ Eng rpm ---
Advertised Engine hp (kW) @ Rated speed AT 2100 per 97/68EC PS: 272 kW
  370 hp
Max Unballast Drwbr hp (kW) @ Eng rpm ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm) ---
Max Torque Rise (80% rtd spd) @ Eng rpm ---
Maximum Torque Rise % (PTO) @ Eng rpm ---
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm ---
Standard PTO Speed @ Eng speed ---
Maximum PTO Power @ Eng rpm ---
Maximum Engine Power @ Eng rpm ---
Max Unballasted Drawbar Power @ Eng rpm ---
75% Load, Full Engine rpm (Unballasted) ---
75% Load @ Reduced rpm (Unballasted) ---
Transmission
Std. Transmission; Forward/Reverse IVT
Opt. Transmission; Forward/Reverse IVT
Reverser Left-hand or Right-hand
On-the-Go Shifting (Yes/No/Partial) Yes
Clutch; Wet/Dry Wet
Creeper IVT
Power Take-Off (PTO)
Standard 45 mm
  1.75 in.
  20 spline, 1000 rpm
Optional Electronically shiftable in cab: 45 mm
  1.75 in.
  20 spline, 1000 rpm
  with 1000/1000E rpm gearcase
PTO Speeds @ Engine rpm At 2000 rpm: 1000 rpm
PTO Actuation Electrohydraulic
Hydraulics
Type Closed-center, pressure/flow compensated
Pump Rated Output, GPM (L/min.) ---
Standard 227.1 L/min
  60 gpm
Optional 321 L/min
  85 gpm
Rated Flow @ One SCV, GPM (L/min.) Coupler: 12.7 mm
  0.5 in.
  96 L/min
  25 gpm
  132 L/min
  35 gpm
  Ccoupler: 19.1 mm
  0.75 in.
  153 L/min
  40.5 gpm
Max Output @ SCV Couplers, GPM (L/min.) ---
Maximum Operating Pressure, psi (kPa) 20,400 (+ or - 300) kPa
  2958 psi
Maximum Hydraulic Power, hp (kW) ---
Hitch Draft Control Load Sense Type Electronic
Remote Control Valves Available Standard: four
  Optional: five or six
  2 Front SCV option
Hitch Category (SAE Designation) Standard: Cat 3/3N
  Optional: Cat 4N/3
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. ---
OECD ---
Standard Cat 4N/3: 8,482 kg
  Cat 4N/3: 18,700 lb
Optional Cat 3/3N: 6,396 kg
  Cat 3/3N: 14,100 lb
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE) ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) ---
Standard ---
Optional ---
Sensing type Electrohydraulic
Joystick SCV control Electrohydraulic optional
Final Drive
Type Inboard planetary
Differential controls Electrohydraulic
Availability Yes
Front Yes
Front & Rear Yes
Engage On-the-Go Rear Differential Lock Yes
Axle Type Bar axle, rack and pinion
Brakes, Type and Control Hydraulic wet disc
Operator Station
Rollover Protective Structure, OOS ---
Rigid - Foldable - Telescopic ---
Platform - Flat/Straddle ---
Gearshift Location - Console/Floor CommandARM
Cab ---
Doors Left hand
Platform - Flat/Straddle Flat
dB(A) Rating ---
Seat Suspension System Standard: Air
  Optional: Active Seat
  Optional: Cab suspension with Air Seat
2WD Dimensions
Wheelbase, in. (mm) ---
Front Tread Range, in. (mm) ---
Rear Tread Range, in. (mm) ---
Minimum Rear Tread Setting, in. (mm) ---
Front Axle Clearance, in. (mm) ---
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab ---
MFWD Dimensions
Wheelbase, in. (mm) MFWD: 3080 mm
  121.3 in.
  ILS: 3050 mm
  120.1 in.
Front Tread Range, in. (mm) 1500 MFWD/ILS: 1524-3657 mm
  60-144 in.
Front Axle Clearance, in. (mm) MFWD: 686 mm
  27 in.
  ILS: 590 mm
  23.2 in.
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Limited Slip Differential Hydraulic lock differential
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab ILS/IVT with: inner weights: 625 kg
  1378 lb
  Front weight support/Cat4 hitch with QC/Fuel 113.6 L
  30 gal.
  480/80R50 duals/420/85R34 front duals
  14,828 kg
  32,691 lb
4WD Dimensions
Wheelbase, in. (mm) ---
Wheel Tread, Min. to Max. in. (mm) ---
Turning Radius w/o Brakes, ft (m) ---
Nebraska Test Unballasted w/Duals, lb (kg) ---
Unballasted Weight, lb (kg) ---
Standard Tires
2WD ---
Front ---
Rear ---
MFWD ---
Front 420/85R34
Rear 480/80R50
4WD ---
Track widths ---
Miscellaneous
Country of Manufacture Waterloo, IA USA
Ballasting Restrictions, lb (kg) Refer to operator's manual
*Notes ---
