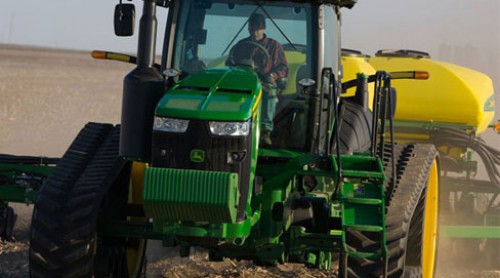

John Deere 8345RT

John Deere 8345RT for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

8R/8RT Series



  • 345 Engine hp
  • John Deere PowerTech™ 9.0L PSS
  • Choice of e23™ PowerShift, or Infinitely Variable Transmission (IVT™)
  • CommandView™ III cab featuring the Generation 4 CommandCenter™
Manufacturer John Deere
Model 8345RT
Specifications
Nebraska Test number Nebr. OECD 1973, Summary 734
Manufacturer John Deere
Engine family ---
Aspiration Variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L) 6/549 (9.0)
Cylinder Liners Wet
Fuel tank capacity, US Gal. (L) (Open; Cab) ---
Standard 200 (758)
Optional N/A
Underhood muffler N/A
Advertised PTO hp (kW) @ Rated rpm 275 hp (205 kW) @ 2100 per SAE
Official PTO hp (kW) @ Rated rpm 278.85 (207.93) @ 2096 rpm
@ Standard PTO @ Eng rpm ---
Maximum @ Eng rpm 318.85 (237.77) @ 1800 rpm
Advertised Engine hp (kW) @ Rated speed 345 hp (254 kW) @ 2100 per 97/68EC PS
Max Unballast Drwbr hp (kW) @ Eng rpm 266.73 (198.90) @ 1957 rpm
Maximum Torque (PTO) @ rpm, lb-ft (Nm) 1039 lb.-ft. (1409 Nm) at 1500 rpm
Max Torque Rise (80% rtd spd) @ Eng rpm ---
Maximum Torque Rise % (PTO) @ Eng rpm 40% at 1698 rpm
PTO @ Rated Eng rpm ---
Standard PTO Speed @ Eng speed ---
Maximum PTO Power @ Eng rpm ---
Maximum Engine Power @ Eng rpm ---
Max Unballasted Drawbar Power @ Eng rpm ---
75% Load, Full Engine rpm (Unballasted) ---
75% Load @ Reduced rpm (Unballasted) ---
Std. Transmission; Forward/Reverse ---
Opt. Transmission; Forward/Reverse ---
Reverser RH w/ IVT
On-the-Go Shifting (Yes/No/Partial) Yes
Clutch; Wet/Dry Wet
Creeper Yes, IVT
Standard 1-3/4-in, 20 spline, 1000
Optional N/A
PTO Speeds @ Engine rpm 1000 @ 2001
PTO Actuation Electrohydraulic
Type Closed-center, pressure and flow compensated
Pump Rated Output, GPM (L/min.) ---
Standard 44 (166.6)
Optional 60 (227.1)
Rated Flow @ One SCV, GPM (L/min.) 35 (132)
Max Output @ SCV Couplers, GPM (L/min.) TBD - Nebraska Test
Maximum Operating Pressure, psi (kPa) 2,900 (20,000)
Maximum Hydraulic Power, hp (kW) TBD - Nebraska Test
Hitch Draft Control Load Sense Type Electrohydraulic
Remote Control Valves Available 4 Std. (3 or 5 Opt.)
Hitch Category (SAE Designation) ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. ---
OECD ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE) ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) ---
Standard ---
Optional ---
Sensing type Electrohydraulic
Joystick SCV control N/A
Type Inboard Planetary
Differential controls N/A
Availability N/A
Front N/A
Front & Rear ---
Engage On-the-Go Rear Differential Lock N/A
Axle Type Bar
Brakes, Type and Control Hydraulic wet disk
Rollover Protective Structure, OOS ---
Rigid - Foldable - Telescopic Rigid (cab)
Platform - Flat/Straddle Flat
Gearshift Location - Console/Floor CommandArm
Cab ---
Doors 1 on left side
Platform - Flat/Straddle Flat
dB(A) Rating 69.8
Seat Suspension System Air
Wheelbase, in. (mm) N/A
Front Tread Range, in. (mm) N/A
Rear Tread Range, in. (mm) N/A
Minimum Rear Tread Setting, in. (mm) N/A
Front Axle Clearance, in. (mm) N/A
Turning Radius w/Brakes, ft (m) N/A
Turning Radius w/o Brakes, ft (m) N/A
Unballasted Operating Weight, lb (kg) N/A
Approx. Ship Wgt, lb (kg) Open; Cab N/A
Wheelbase, in. (mm) N/A
Front Tread Range, in. (mm) N/A
Front Axle Clearance, in. (mm) N/A
Turning Radius w/Brakes, ft (m) N/A
Turning Radius w/o Brakes, ft (m) N/A
Limited Slip Differential N/A
Unballasted Operating Weight, lb (kg) N/A
Approx. Ship Wgt, lb (kg) Open; Cab N/A
Wheelbase, in. (mm) 99 (2515)
Wheel Tread, Min. to Max. in. (mm) 72 (1828.8) - 120 (3048) Std. (112 (2844.8) - 160 (4064) Opt.)
Turning Radius w/o Brakes, ft (m) TBD
Nebraska Test Unballasted w/Duals, lb (kg) TBD - Nebraska Test
Unballasted Weight, lb (kg) 34,460 (15,631) Avg. Shipping Weight
2WD ---
Front N/A
Rear N/A
MFWD ---
Front N/A
Rear N/A
4WD N/A
Track widths 25-in Std. (16-in, 18-in, 24-in, and 30-in Opt)
Country of Manufacture Waterloo, IA USA
Ballasting Restrictions, lb (kg) Refer to Operator's Manual
*Notes ---
