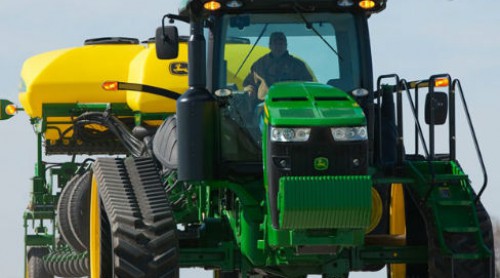

John Deere 8320RT

John Deere 8320RT for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

8R/8RT Series



  • 320 Engine hp
  • John Deere PowerTech™ 9.0L PSS
  • Choice of e23™ PowerShift, or Infinitely Variable Transmission (IVT™)
  • CommandView™ III cab featuring the Generation 4 CommandCenter™
Manufacturer John Deere
Model 8320RT
Specifications
Nebraska Test number Nebr. OECD 1971, Summary 732
Manufacturer John Deere
Aspiration Variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L) 6/549 (9.0)
Cylinder Liners Wet
Fuel tank capacity, US Gal. (L) (Open; Cab) ---
Standard 200 (758)
Optional N/A
Underhood muffler N/A
Engine family
Advertised PTO hp (kW) @ Rated rpm 255 hp (190 kW) @ 2100 per SAE
Official PTO hp (kW) @ Rated rpm 261.34 (194.88) @ 2100 rpm
@ Standard PTO @ Eng rpm ---
Maximum @ Eng rpm 297.43 (221.79) @ 1749 rpm
Advertised Engine hp (kW) @ Rated speed 320 hp (235 kW) @ 2100 per 97/68EC PS
Max Unballast Drwbr hp (kW) @ Eng rpm 259.72 (193.67) @ 1748 rpm in 10th gear
Maximum Torque (PTO) @ rpm, lb-ft (Nm) 978 lb.-ft (1325 Nm) at 1501 rpm
Max Torque Rise (80% rtd spd) @ Eng rpm TBD - Nebraska Test
Maximum Torque Rise % (PTO) @ Eng rpm 40% @ 1698 rpm
PTO @ Rated Eng rpm ---
Standard PTO Speed @ Eng speed ---
Maximum PTO Power @ Eng rpm ---
Maximum Engine Power @ Eng rpm ---
Max Unballasted Drawbar Power @ Eng rpm ---
75% Load, Full Engine rpm (Unballasted) ---
75% Load @ Reduced rpm (Unballasted) ---
Std. Transmission; Forward/Reverse ---
Opt. Transmission; Forward/Reverse ---
Reverser RH w/ IVT
On-the-Go Shifting (Yes/No/Partial) Yes
Clutch; Wet/Dry Wet
Creeper Yes, IVT
Standard 1-3/4-in, 20 spline, 1000
Optional N/A
PTO Speeds @ Engine rpm 1000 @ 2001
PTO Actuation Electrohydraulic
Type Closed-center, pressure and flow compensated
Pump Rated Output, GPM (L/min.) ---
Standard 44 (166.6)
Optional 60 (227.1)
Rated Flow @ One SCV, GPM (L/min.) 35 (132)
Max Output @ SCV Couplers, GPM (L/min.) TBD - Nebraska Test
Maximum Operating Pressure, psi (kPa) 2,900 (20,000)
Maximum Hydraulic Power, hp (kW) TBD - Nebraska Test
Hitch Draft Control Load Sense Type Electrohydraulic
Remote Control Valves Available 4 Std. (3 or 5 Opt.)
Hitch Category (SAE Designation) ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. ---
OECD ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE) ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) ---
Standard ---
Optional ---
Sensing type Electrohydraulic
Joystick SCV control N/A
Type Inboard Planetary
Differential controls N/A
Availability N/A
Front N/A
Front & Rear ---
Engage On-the-Go Rear Differential Lock N/A
Axle Type Bar
Brakes, Type and Control Hydraulic wet disk
Rollover Protective Structure, OOS ---
Rigid - Foldable - Telescopic Rigid (cab)
Platform - Flat/Straddle Flat
Gearshift Location - Console/Floor CommandArm
Cab ---
Doors 1 on left side
Platform - Flat/Straddle Flat
dB(A) Rating 70.7
Seat Suspension System Air
Wheelbase, in. (mm) N/A
Front Tread Range, in. (mm) N/A
Rear Tread Range, in. (mm) N/A
Minimum Rear Tread Setting, in. (mm) N/A
Front Axle Clearance, in. (mm) N/A
Turning Radius w/Brakes, ft (m) N/A
Turning Radius w/o Brakes, ft (m) N/A
Unballasted Operating Weight, lb (kg) N/A
Approx. Ship Wgt, lb (kg) Open; Cab N/A
Wheelbase, in. (mm) N/A
Front Tread Range, in. (mm) N/A
Front Axle Clearance, in. (mm) N/A
Turning Radius w/Brakes, ft (m) N/A
Turning Radius w/o Brakes, ft (m) N/A
Limited Slip Differential N/A
Unballasted Operating Weight, lb (kg) N/A
Approx. Ship Wgt, lb (kg) Open; Cab N/A
Wheelbase, in. (mm) 99 (2515)
Wheel Tread, Min. to Max. in. (mm) 72 (1828.8) - 120 (3048) Std. (112 (2844.8) - 160 (4064) Opt.)
Turning Radius w/o Brakes, ft (m) TBD
Nebraska Test Unballasted w/Duals, lb (kg) TBD - Nebraska Test
Unballasted Weight, lb (kg) 34,460 (15,631) Avg. Shipping Weight
2WD ---
Front N/A
Rear N/A
MFWD ---
Front N/A
Rear N/A
4WD N/A
Track widths 25-in Std. (16-in, 18-in, 24-in, and 30-in Opt)
Country of Manufacture Waterloo, IA USA
Ballasting Restrictions, lb (kg) Refer to Operator's Manual
*Notes ---
