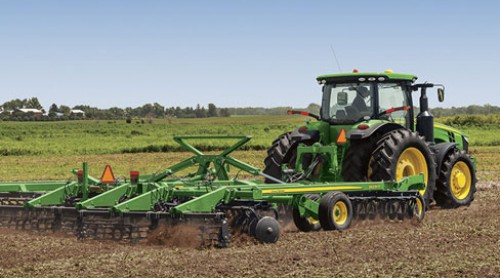

John Deere 8320R

John Deere 8320R for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

8R/8RT Series



  • 320 Engine hp
  • John Deere PowerTech™ 9.0L PSS
  • Choice of 16-speed PowerShift, e23™ PowerShift, or Infinitely Variable Transmission (IVT™)
  • MFWD, or Independent Link Suspension (ILS™)



Manufacturer John Deere
Model 8320 215 PTO hp
Official Test
Nebraska Test number ---
Engine
Manufacturer John Deere
Cylinders/Displacement, cu. in. (L) 6/496 (8.1)
Cylinder Liners Wet
Fuel tank capacity, US Gal. (L) (Open; Cab) ---
Standard ---
Optional ---
Underhood muffler ---
Aspiration
Engine family
Performance
Advertised PTO hp (kW) @ Rated rpm 215 (160) @ 2200
Official PTO hp (kW) @ Rated rpm --
@ Standard PTO @ Eng rpm ---
Maximum @ Eng rpm 247.89 (184.85) @ 1950
Advertised Engine hp (kW) @ Rated speed ---
Max Unballast Drwbr hp (kW) @ Eng rpm 216.79 (161.66) @ 1949
Maximum Torque (PTO) @ rpm, lb-ft (Nm) 760 (1030) @ 1300
Max Torque Rise (80% rtd spd) @ Eng rpm 31.0% @ 1801
Maximum Torque Rise % (PTO) @ Eng rpm 45.7% @ 1300
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm ---
Standard PTO Speed @ Eng speed ---
Maximum PTO Power @ Eng rpm ---
Maximum Engine Power @ Eng rpm ---
Max Unballasted Drawbar Power @ Eng rpm ---
75% Load, Full Engine rpm (Unballasted) ---
75% Load @ Reduced rpm (Unballasted) ---
Transmission
Std. Transmission; Forward/Reverse ---
Opt. Transmission; Forward/Reverse ---
Reverser ---
On-the-Go Shifting (Yes/No/Partial) Yes
Clutch; Wet/Dry Hydraulic Wet Disk
Creeper No
Power Take-Off (PTO)
Standard Independent 1000
Optional 540/1000
PTO Speeds @ Engine rpm ---
PTO Actuation ---
Hydraulics
Pump Rated Output, GPM (L/min.) ---
Standard ---
Optional ---
Rated Flow @ One SCV, GPM (L/min.) ---
Max Output @ SCV Couplers, GPM (L/min.) ---
Maximum Operating Pressure, psi (kPa) 2900 (20,000)
Maximum Hydraulic Power, hp (kW) 56.8 (42.3)
Hitch Draft Control Load Sense Type ---
Hitch Category (SAE Designation) ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. ---
OECD ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE) ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) ---
Standard ---
Optional ---
Sensing type ---
Joystick SCV control ---
Remote Control Valves Available
Type
Final Drive
Type Inboard Planetary
Differential controls Electro Hydraulic
Availability ---
Front ---
Front & Rear ---
Engage On-the-Go Rear Differential Lock Yes
Axle Type ---
Brakes, Type and Control ---
Operator Station
Rollover Protective Structure, OOS ---
Rigid - Foldable - Telescopic ---
Platform - Flat/Straddle ---
Gearshift Location - Console/Floor ---
Cab ---
Doors 1- Left-Hand
Platform - Flat/Straddle ---
dB(A) Rating 72.0
Seat Suspension System Air std. / Active Seat optional
2WD Dimensions
Wheelbase, in. (mm) ---
Front Tread Range, in. (mm) ---
Rear Tread Range, in. (mm) ---
Minimum Rear Tread Setting, in. (mm) ---
Front Axle Clearance, in. (mm) ---
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab ---
MFWD Dimensions
Wheelbase, in. (mm) 116.9 (2970) / 115.7 (2940)
Front Tread Range, in. (mm) 60-88 (1523-2234) / 60-88 (1516-2230)
Front Axle Clearance, in. (mm) 27.0 (686) / 23.0 (585)
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) 18.4 (5.6) / 18.9 (5.8)
Limited Slip Differential Standard / Hydraulic
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab 21,050 (9548) / 22,450 (10,183)
4WD Dimensions
Wheelbase, in. (mm) ---
Wheel Tread, Min. to Max. in. (mm) ---
Turning Radius w/o Brakes, ft (m) ---
Nebraska Test Unballasted w/Duals, lb (kg) ---
Unballasted Weight, lb (kg) ---
Standard Tires
2WD ---
Front ---
Rear ---
MFWD MFWD / Independant Link Suspension
Front 16.9R30 / none
Rear 18.4R46 / 18.4R46
4WD ---
Track widths ---
Miscellaneous
Country of Manufacture Waterloo, IA U.S.A.
Ballasting Restrictions, lb (kg) ---
*Notes ---
