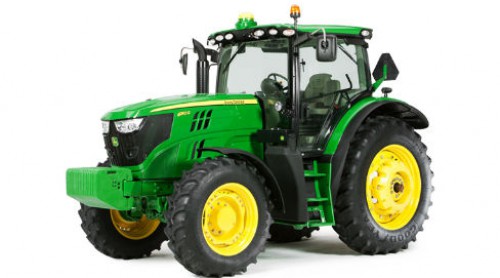

John Deere 6155R

John Deere 6155R for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

6R Series



  • Durable John Deere 6 cylinder, 6.8L PowerTech™ Final Tier 4 Engine
  • Several transmission options, including AutoQuad PLUS™, Direct Drive or Infinitely Variable Transmission
  • ComfortView™ cab for all day comfort



Manufacturer John Deere
Model 6155R FT4
Official Test
Nebraska Test number  TBD - Nebraska Test
Engine
Manufacturer  John Deere PowerTech PVS
Engine family  ---
Aspiration  Single variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L)  6 / 6.8 L
   6 / 415 cu in.
Cylinder Liners  Wet sleeve
Fuel tank capacity, US Gal. (L) (Open; Cab)  ---
Standard  270 L
   71.3 U.S. gal.
Optional  ---
Underhood muffler  Yes
Performance
Advertised PTO hp (kW) @ Rated rpm  90 @ 2100 kW
   121 @ 2100 hp
Official PTO hp (kW) @ Rated rpm  TBD - Nebraska Test
@ Standard PTO @ Eng rpm  TBD - Nebraska Test
Maximum @ Eng rpm  TBD - Nebraska Test
Advertised Engine hp (kW) @ Rated speed  114 kW
   155 engine hp
Max Unballast Drwbr hp (kW) @ Eng rpm  TBD - Nebraska Test
Maximum Torque (PTO) @ rpm, lb-ft (Nm)  TBD - Nebraska Test
Max Torque Rise (80% rtd spd) @ Eng rpm  TBD - Nebraska Test
Maximum Torque Rise % (PTO) @ Eng rpm  TBD - Nebraska Test
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm  TBD - Nebraska Test
Standard PTO Speed @ Eng speed  TBD - Nebraska Test
Maximum PTO Power @ Eng rpm  TBD - Nebraska Test
Maximum Engine Power @ Eng rpm  TBD - Nebraska Test
Max Unballasted Drawbar Power @ Eng rpm  TBD - Nebraska Test
75% Load, Full Engine rpm (Unballasted)  TBD - Nebraska Test
75% Load @ Reduced rpm (Unballasted)  TBD - Nebraska Test
Transmission
Std. Transmission; Forward/Reverse  20-speed AutoQuad PLUS ECO transmission; 40 km/h
   20-speed AutoQuad PLUS ECO transmission; 25 mph
Opt. Transmission; Forward/Reverse  16-speed PowrQuad PLUS transmission, 20-speed AutoQuad PLUS ECO transmission (50), John Deere Infinitely Variable Transmission (IVT)(0.050 to 42), or John Deere IVT (0.050 to 50) km/h
   16-speed PowrQuad PLUS transmission, 20-speed AutoQuad PLUS ECO transmission (31), John Deere Infinitely Variable Transmission (IVT) (0.030 to 26), or John Deere IVT (0.030 to 31) mph
Reverser  Left-hand base
On-the-Go Shifting (Yes/No/Partial)  Yes
Clutch; Wet/Dry  Wet
Creeper  Included with IVT
Power Take-Off (PTO)
Standard  1-3/8-in. 540/1000 reversible shaft
Optional  1-3/8-in. 540/540E/1000 reversible shaft or 1-3/8-in. 540E/1000/1000E reversible shaft
PTO Speeds @ Engine rpm  ---
PTO Actuation  Electrohydraulic
Hydraulics
Type  Closed-center, pressure/flow compensated
Pump Rated Output, GPM (L/min.)  ---
Standard  114 Advertised L/min
   30.1 Advertised gpm
Optional  ---
Rated Flow @ One SCV, GPM (L/min.)  TBD - Nebraska Test
Max Output @ SCV Couplers, GPM (L/min.)  TBD - Nebraska Test
Maximum Operating Pressure, psi (kPa)  20000 kPa
   2900 psi
Maximum Hydraulic Power, hp (kW)  TBD - Nebraska Test
Hitch Draft Control Load Sense Type  Electrohydraulic
Remote Control Valves Available  3-450 Series Mechanical SCVs standard, 3 to 4 electrohydraulic SCVs; 2 or 4 mechanical SCVs are optional
Hitch Category (SAE Designation)  3/3N
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt.  ---
OECD  ---
Standard  TBD - Nebraska Test
Optional  TBD - Nebraska Test
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE)  ---
Standard  N/A
Optional  N/A
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE)  ---
Standard  N/A
Optional  N/A
Sensing type  Electronic lower link
Joystick SCV control  Mechanical or electronic
Final Drive
Type  Inboard planetary three pinion
Differential controls  Electrohydraulic
Availability  ---
Front  Yes
Front & Rear  Yes
Engage On-the-Go Rear Differential Lock  Yes
Axle Type  Rack and pinion
Brakes, Type and Control  Hydraulic wet disc
Operator Station
Rollover Protective Structure, OOS  ---
Rigid - Foldable - Telescopic  ---
Platform - Flat/Straddle  ---
Gearshift Location - Console/Floor  ---
Cab  ---
Doors  ---
Platform - Flat/Straddle  ---
dB(A) Rating  TBD - Nebraska Test
Seat Suspension System  ---
2WD Dimensions
Wheelbase, in. (mm)  2985 mm
   117.51 in.
Front Tread Range, in. (mm)  1485-2438 mm
   58.5-96 in.
Rear Tread Range, in. (mm)  1604-2302 mm
   63.1-90.6 in.
Minimum Rear Tread Setting, in. (mm)  N/A
Front Axle Clearance, in. (mm)  469 mm
   18.5 in.
Turning Radius w/Brakes, ft (m)  N/A
Turning Radius w/o Brakes, ft (m)  N/A
Unballasted Operating Weight, lb (kg)  N/A
Approx. Ship Wgt, lb (kg) Open; Cab  ---
MFWD Dimensions
Wheelbase, in. (mm)  2765 mm
   108.9 in.
Front Tread Range, in. (mm)  1714 to 2122 mm
   67.5 to 83.5 in.
Front Axle Clearance, in. (mm)  597 mm
   23.5 in.
Turning Radius w/Brakes, ft (m)  TBD
Turning Radius w/o Brakes, ft (m)  6.96 m
   22.10 ft
Limited Slip Differential  Yes
Unballasted Operating Weight, lb (kg)  N/A
Approx. Ship Wgt, lb (kg) Open; Cab  6195 kg
   13657 lb
4WD Dimensions
Wheelbase, in. (mm)  ---
Wheel Tread, Min. to Max. in. (mm)  ---
Turning Radius w/o Brakes, ft (m)  ---
Nebraska Test Unballasted w/Duals, lb (kg)  ---
Unballasted Weight, lb (kg)  ---
Standard Tires
2WD  ---
Front  11.00-20 in.
Rear  480/80R46
MFWD  ---
Front  380/85R30
Rear  480/80R42
4WD  ---
Track widths  ---
Miscellaneous
Country of Manufacture  Waterloo, Iowa, United States
Ballasting Restrictions, lb (kg)  Refer to operator's manual
*Notes  Updated - 28 March 2015
