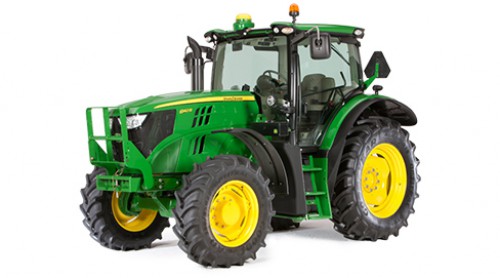

John Deere 6140R

John Deere 6140R for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

6R Series



  • Reliable John Deere 6.8L PowerTech™ Interim Tier 4 engine
  • Standard 20 Speed AutoQuad PLUS™ transmission or available Direct Drive or Infinitely Variable Transmission
  • ComfortView™ cab for all day comfort
Manufacturer John Deere
Model 6140R iT4
Official Test
Nebraska Test number  Nebraska OECD Tractor Test 2059 - Summary 879
Engine
Manufacturer  John Deere PowerTech PVX
Engine family  ---
Aspiration  Single variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L)  6 / 6.8 L
   6 / 415 cu in.
Cylinder Liners  Wet sleeve
Fuel tank capacity, US Gal. (L) (Open; Cab)  ---
Standard  305 L
   80.5 gal.
Optional  N/A
Underhood muffler  Yes
Performance
Advertised PTO hp (kW) @ Rated rpm  83 @ 2100 per SAE kW
   111 @ 2100 per SAE hp
Official PTO hp (kW) @ Rated rpm  85.07 @ 2100 per SAE kW
   114.09 @ 2100 per SAE hp
@ Standard PTO @ Eng rpm  94.18 @ 2010 per SAE kW
   126.30 @ 2010 per SAE PTO hp
Maximum @ Eng rpm  100.24 @ 1700 kW
   134.42 @ 1700 PTO hp
Advertised Engine hp (kW) @ Rated speed  103 @ 2100 kW
   140 @ 2100 hp
Max Unballast Drwbr hp (kW) @ Eng rpm  93.00 @ 1700 kW
   124.71 @ 1700 hp
Maximum Torque (PTO) @ rpm, lb-ft (Nm)  591 @ 1499 Nm
   436 @ 1499 lb-ft
Max Torque Rise (80% rtd spd) @ Eng rpm  46.0 @ 1680 percent
Maximum Torque Rise % (PTO) @ Eng rpm  52.7 @ 1499 percent
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm  27.91 & 3.05 @ 2100 U.S. gal./hr
   7.37 & 15.47 @ 2100 gal.
Standard PTO Speed @ Eng speed  29.20 & 3.23 @ 2011 U.S. gal./hr
   7.71 & 16.37 @ 2011 gal.
Maximum PTO Power @ Eng rpm  28.86 & 3.47 @ 1700 U.S. gal./hr
   7.62 & 17.63 @ 1700 gal.
Maximum Engine Power @ Eng rpm  27.90 & 2.91 @ 2100 U.S. gal./hr
   7.37 & 14.76 @ 2100 gal.
Max Unballasted Drawbar Power @ Eng rpm  28.73 & 2.91 @ 1700 U.S. gal./hr
   7.59 & 14.76 @ 1700 gal.
75% Load, Full Engine rpm (Unballasted)  19.91 & 3.20 @ 1375 U.S. gal./hr
   5.28 & 16.24 @ 1375 gal.
75% Load @ Reduced rpm (Unballasted)  24.49 & 2.91 @ 2194 U.S. gal./hr
   6.47 & 14.76 @ 2194 gal.
Transmission
Std. Transmission; Forward/Reverse  20-speed AutoQuad PLUS ECO transmission 40 km/h
Opt. Transmission; Forward/Reverse  16-speed PowrQuad PLUS transmission, 20-speed AutoQuad PLUS ECO transmission 50 km/h, John Deere Infinitely Variable Transmission (IVT) 0.030 mph to 26 mph (0.050 km/h to 42 km/h), or John Deere IVT 0.030 mph to 31 mph (0.050 km/h to 50 km/h)
Reverser  Left-hand base
On-the-Go Shifting (Yes/No/Partial)  Yes
Clutch; Wet/Dry  Wet
Creeper  Included with IVT
Power Take-Off (PTO)
Standard  1-3/8-in. 540/1000 reversible shaft
Optional  1-3/8-in. 540/540E/1000 reversible shaft or 1-3/8-in. 540E/1000/1000E reversible shaft
PTO Speeds @ Engine rpm  540 @ 1987 or 1000 @ 2010
PTO Actuation  Electrohydraulic
Hydraulics
Type  Closed-center, pressure/flow compensated
Pump Rated Output, GPM (L/min.)  ---
Standard  114 Advertised L/min
   30.1 Advertised gpm
Optional  N/A
Rated Flow @ One SCV, GPM (L/min.)  116.8 L/min
   30.9 gpm
Max Output @ SCV Couplers, GPM (L/min.)  116.5 L/min
   30.8 gpm
Maximum Operating Pressure, psi (kPa)  20,000 kPa
   2900 psi
Maximum Hydraulic Power, hp (kW)  35.8 kW
   48.1 hp
Hitch Draft Control Load Sense Type  Electrohydraulic
Remote Control Valves Available  3-450 Series Mechanical SCVs standard, 3 to 4 electrohydraulic SCVs; 2 or 4 mechanical SCVs are optional
Hitch Category (SAE Designation)  Category 3/3N
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt.  ---
OECD  ---
Standard  36.5 kN - 2 x 85 mm lift cylinders
   8,216 lb - 2 x 85 mm lift cylinders lb
Optional  N/A
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE)  ---
Standard  N/A
Optional  N/A
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE)  ---
Standard  N/A
Optional  N/A
Sensing type  Electronic lower link
Joystick SCV control  Mechanical or electronic
Final Drive
Type  Inboard planetary three pinion
Differential controls  Electrohydraulic
Availability  ---
Front  Yes
Front & Rear  Yes
Engage On-the-Go Rear Differential Lock  Yes
Axle Type  Rack and pinion
Brakes, Type and Control  Hydraulic wet disc
Operator Station
Rollover Protective Structure, OOS  N/A
Rigid - Foldable - Telescopic  N/A
Platform - Flat/Straddle  N/A
Gearshift Location - Console/Floor  N/A
Cab  ---
Doors  ---
Platform - Flat/Straddle  ---
dB(A) Rating  70.8 dBA
Seat Suspension System  ---
2WD Dimensions
Wheelbase, in. (mm)  2985 mm
   117.51 in.
Front Tread Range, in. (mm)  1485-2438 mm
   58.5-96 in.
Rear Tread Range, in. (mm)  1604-2302 mm
   63.1-90.6 in.
Minimum Rear Tread Setting, in. (mm)  ---
Front Axle Clearance, in. (mm)  469 mm
   18.5 in.
Turning Radius w/Brakes, ft (m)  ---
Turning Radius w/o Brakes, ft (m)  ---
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  ---
MFWD Dimensions
Wheelbase, in. (mm)  2765 mm
   108.9 in.
Front Tread Range, in. (mm)  1714 to 2122 mm
   67.5 to 83.5 in.
Front Axle Clearance, in. (mm)  597 mm
   23.5 in.
Turning Radius w/Brakes, ft (m)  TBD
Turning Radius w/o Brakes, ft (m)  6.96 m
   22.10 ft
Limited Slip Differential  Yes
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  6195 kg
   13657 lb
4WD Dimensions
Wheelbase, in. (mm)  N/A
Wheel Tread, Min. to Max. in. (mm)  N/A
Turning Radius w/o Brakes, ft (m)  N/A
Nebraska Test Unballasted w/Duals, lb (kg)  N/A
Unballasted Weight, lb (kg)  N/A
Standard Tires
2WD  ---
Front  11.00-20 in.
Rear  480/80R46
MFWD  ---
Front  380/85R30
Rear  480/80R42
4WD  N/A
Track widths  N/A
Miscellaneous
Country of Manufacture  Waterloo, Iowa, United States
Ballasting Restrictions, lb (kg)  Refer to operator's manual
*Notes  Updated - 28 March 2015
