E Series Tractors



  • FT4 John Deere PowerTech™ engine
  • 12/12 or 24/12 hi-lo PowrReverser™ transmission
  • Cab, 2WD or MFWD
  • 15 degrees of
Manufacturer John Deere

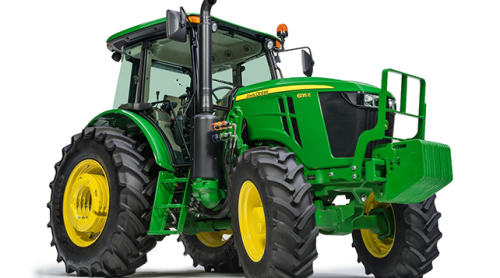

Model 6135E Tractor FT4
Official Test
Nebraska Test number  Yet to be tested
Engine
Manufacturer  John Deere PowerTech™ PWS (B20 Diesel Compatible)
Engine family  ---
Aspiration  Wastegate Turbocharger with air to air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L)  4.5 L
 275 cu in.
Cylinder Liners  Wet
Fuel tank capacity, US Gal. (L) (Open; Cab)  ---
Standard  168 L
 44.4 U.S. gal.
Optional  ---
Underhood muffler  ---
Performance
Advertised PTO hp (kW) @ Rated rpm  86 @ 2100 rpm kW
 115 @ 2100 rpm PTO hp
Official PTO hp (kW) @ Rated rpm  ---
@ Standard PTO @ Eng rpm  ---
Maximum @ Eng rpm  ---
Advertised Engine hp (kW) @ Rated speed  99 @ 2200 kW
 135 @ 2200 engine hp
Max Unballast Drwbr hp (kW) @ Eng rpm  ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm)  ---
Max Torque Rise (80% rtd spd) @ Eng rpm  29% @ 1600 rpm
Maximum Torque Rise % (PTO) @ Eng rpm  30%
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm  ---
Standard PTO Speed @ Eng speed  ---
Maximum PTO Power @ Eng rpm  ---
Maximum Engine Power @ Eng rpm  ---
Max Unballasted Drawbar Power @ Eng rpm  ---
75% Load, Full Engine rpm (Unballasted)  ---
75% Load @ Reduced rpm (Unballasted)  ---
Transmission
Std. Transmission; Forward/Reverse  12F/12R PowrReverser Transmission (30) km/h
 12F/12R PowrReverser Transmission (19) mph
Opt. Transmission; Forward/Reverse  24F/12R PowrReverser Transmission (40) km/h
 24F/12R PowrReverser Transmission (25) mph
Reverser  Base LH
On-the-Go Shifting (Yes/No/Partial)  Yes
Clutch; Wet/Dry  Wet
Creeper  No
Power Take-Off (PTO)
Standard  Independent 540/1000
Optional  ---
PTO Speeds @ Engine rpm  540 @ 2085 or 1000 @ 2067 rpm
PTO Actuation  Electronic
Hydraulics
Type  Open-center
Pump Rated Output, GPM (L/min.)  ---
Standard  20.0 Advertised gpm
 75.7 Advertised L/min
Optional  ---
Rated Flow @ One SCV, GPM (L/min.)  20.0 gpm
 75.7 L/min
Max Output @ SCV Couplers, GPM (L/min.)  20.4 gpm
 77.2 L/min
Maximum Operating Pressure, psi (kPa)  19,500 kPa
 2828 psi
Maximum Hydraulic Power, hp (kW)  ---
Hitch Draft Control Load Sense Type  Lower-link
Remote Control Valves Available  2 std., 3 opt. with deluxe coupler
Hitch Category (SAE Designation)  Category II
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt.  ---
OECD  ---
Standard  2500 kg Advertised with 2 x 70 mm lift cylinders
 5500 lb Advertised with 2 x 70 mm lift cylinders
Optional  3318 kg Advertised with 2 x 80 mm lift cylinders
 7300 lb Advertised with 2 x 80 mm lift cylinders
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE)  ---
Standard  ---
Optional  ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE)  ---
Standard  ---
Optional  ---
Sensing type  Mechanical
Joystick SCV control  Mid mount, opt.
Final Drive
Type  Inboard planetary
Differential controls  Mechanical
Availability  ---
Front  ---
Front & Rear  ---
Engage On-the-Go Rear Differential Lock  Yes
Axle Type  Flanged
Brakes, Type and Control  Mechanically actuated wet disk
Operator Station
Rollover Protective Structure, OOS  Yes
Rigid - Foldable - Telescopic  Foldable
Platform - Flat/Straddle  Flat
Gearshift Location - Console/Floor  Floor
Cab  ---
Doors  2
Platform - Flat/Straddle  Flat
dB(A) Rating  79.3
Seat Suspension System  Mechanical, Air opt.
2WD Dimensions
Wheelbase, in. (mm)  ---
Front Tread Range, in. (mm)  ---
Rear Tread Range, in. (mm)  ---
Minimum Rear Tread Setting, in. (mm)  ---
Front Axle Clearance, in. (mm)  ---
Turning Radius w/Brakes, ft (m)  ---
Turning Radius w/o Brakes, ft (m)  ---
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  ---
MFWD Dimensions
Wheelbase, in. (mm)  2450 mm
 96.5 in.
Front Tread Range, in. (mm)  1523-2033 mm
 60.0-80.0 in.
Front Axle Clearance, in. (mm)  457 mm
 18 in.
Turning Radius w/Brakes, ft (m)  ---
Turning Radius w/o Brakes, ft (m)  ---
Limited Slip Differential  Yes
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  4268; 4645 kg
 9410; 10,240 lb
4WD Dimensions
Wheelbase, in. (mm)  2450 mm
 96.5 in.
Wheel Tread, Min. to Max. in. (mm)  ---
Turning Radius w/o Brakes, ft (m)  ---
Nebraska Test Unballasted w/Duals, lb (kg)  ---
Unballasted Weight, lb (kg)  ---
Standard Tires
2WD  ---
Front  ---
Rear  ---
MFWD  ---
Front  380/85R24 in. 8PR R1W Radial
Rear  460/85R38 in. 8PR R1W Radial
4WD  ---
Track widths  ---
Miscellaneous
Country of Manufacture  Saltillo, Mexico
Ballasting Restrictions, lb (kg)  Refer to operator's manual
*Notes  Updated - 1 August 2015
