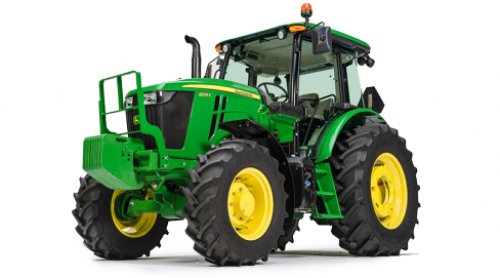

John Deere 6105E

John Deere 6105E for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

E Series Tractors



  • FT4 John Deere PowerTech™ engine
  • 12/12 or 24/12 hi-lo PowrReverser™ transmission
  • Cab, open station, 2WD or MFWD
  • 15 degrees of seat swivel with optional air-ride seat
Manufacturer John Deere
Model 6105E Tractor FT4
Official Test
Nebraska Test number  Yet to be tested
Engine
Manufacturer  John Deere PowerTech™ PWL (B20 Diesel Compatible)
Engine family  ---
Aspiration  Wastegate turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L)  4.5 L
   275 cu in.
Cylinder Liners  Wet
Fuel tank capacity, US Gal. (L) (Open; Cab)  ---
Standard  168 L
   44.4 U.S. gal.
Optional  ---
Underhood muffler  ---
Performance
Advertised PTO hp (kW) @ Rated rpm  66 @ 2100 rpm kW
   89 @ 2100 rpm PTO hp
Official PTO hp (kW) @ Rated rpm  ---
@ Standard PTO @ Eng rpm  ---
Maximum @ Eng rpm  ---
Advertised Engine hp (kW) @ Rated speed  77 @ 2200 kW
   105 @ 2200 engine hp
Max Unballast Drwbr hp (kW) @ Eng rpm  ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm)  ---
Max Torque Rise (80% rtd spd) @ Eng rpm  25% @ 1500 rpm
Maximum Torque Rise % (PTO) @ Eng rpm  30%
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm  ---
Standard PTO Speed @ Eng speed  ---
Maximum PTO Power @ Eng rpm  ---
Maximum Engine Power @ Eng rpm  ---
Max Unballasted Drawbar Power @ Eng rpm  ---
75% Load, Full Engine rpm (Unballasted)  ---
75% Load @ Reduced rpm (Unballasted)  ---
Transmission
Std. Transmission; Forward/Reverse  12F/12R PowrReverser Transmission (30) km/h
   12F/12R PowrReverser Transmission (19) mph
Opt. Transmission; Forward/Reverse  24F/12R PowrReverser Transmission (40) km/h
   24F/12R PowrReverser Transmission (25) mph
Reverser  Base LH
On-the-Go Shifting (Yes/No/Partial)  Yes
Clutch; Wet/Dry  Wet
Creeper  No
Power Take-Off (PTO)
Standard  Independent 540/1000
Optional  ---
PTO Speeds @ Engine rpm  540 @ 2085 or 1000 @ 2067 rpm
PTO Actuation  Electronic
Hydraulics
Type  Open-center
Pump Rated Output, GPM (L/min.)  ---
Standard  20.0 Advertised gpm
   75.7 Advertised L/min
Optional  ---
Rated Flow @ One SCV, GPM (L/min.)  20.0 gpm
   75.7 L/min
Max Output @ SCV Couplers, GPM (L/min.)  ---
Maximum Operating Pressure, psi (kPa)  19,500 kPa
   2828 psi
Maximum Hydraulic Power, hp (kW)  ---
Hitch Draft Control Load Sense Type  Lower-link
Remote Control Valves Available  2 std., 3 opt. with deluxe coupler
Hitch Category (SAE Designation)  Category II
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt.  ---
OECD  ---
Standard  2500 kg Advertised with 2 x 70 mm lift cylinders
   5500 lb Advertised with 2 x 70 mm lift cylinders
Optional  3318 kg Advertised with 2 x 80 mm lift cylinders
   7300 lb Advertised with 2 x 80 mm lift cylinders
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE)  ---
Standard  ---
Optional  ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE)  ---
Standard  ---
Optional  ---
Sensing type  Mechanical
Joystick SCV control  Mid mount, opt.
Final Drive
Type  Inboard planetary
Differential controls  Mechanical
Availability  ---
Front  ---
Front & Rear  ---
Engage On-the-Go Rear Differential Lock  Yes
Axle Type  Flanged
Brakes, Type and Control  Mechanically actuated wet disk
Operator Station
Rollover Protective Structure, OOS  Yes
Rigid - Foldable - Telescopic  Foldable
Platform - Flat/Straddle  Flat
Gearshift Location - Console/Floor  Floor
Cab  ---
Doors  2
Platform - Flat/Straddle  Flat
dB(A) Rating  75
Seat Suspension System  Mechanical, Air opt.
2WD Dimensions
Wheelbase, in. (mm)  2456 mm
   96.7 in.
Front Tread Range, in. (mm)  1523-2033 mm
   60.0-80.0 in.
Rear Tread Range, in. (mm)  1512-2012 mm
   59.5-79.2 in.
Minimum Rear Tread Setting, in. (mm)  1523 mm
   60.0 in.
Front Axle Clearance, in. (mm)  597 mm
   23.5 in.
Turning Radius w/Brakes, ft (m)  2.1 m @ 64.4 in. tread setting
   7 ft. @ 64.4 in. tread setting
Turning Radius w/o Brakes, ft (m)  2.9 m @ 64.4 in. tread setting
   9.5 ft @ 64.4 in. tread setting
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  3960 ; 4064 kg
   8480 ; 9780 lb
MFWD Dimensions
Wheelbase, in. (mm)  2450 mm
   96.5 in.
Front Tread Range, in. (mm)  1523-2033 mm
   60.0-80.0 in.
Front Axle Clearance, in. (mm)  457 mm
   18 in.
Turning Radius w/Brakes, ft (m)  ---
Turning Radius w/o Brakes, ft (m)  ---
Limited Slip Differential  Yes
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  4268; 4645 kg
   9410; 10,240 lb
4WD Dimensions
Wheelbase, in. (mm)  2450 mm
   96.5 in.
Wheel Tread, Min. to Max. in. (mm)  ---
Turning Radius w/o Brakes, ft (m)  ---
Nebraska Test Unballasted w/Duals, lb (kg)  ---
Unballasted Weight, lb (kg)  ---
Standard Tires
2WD  ---
Front  10.00-16 in. 8PR F2 Bias
Rear  460/85R38 in. 8PR R1W Radial
MFWD  ---
Front  380/85R24 in. 8PR R1W Radial
Rear  460/85R38 in. 8PR R1W Radial
4WD  ---
Track widths  ---
Miscellaneous
Country of Manufacture  Saltillo, Mexico
Ballasting Restrictions, lb (kg)  Refer to operator's manual
*Notes  Updated - 1 August 2015
