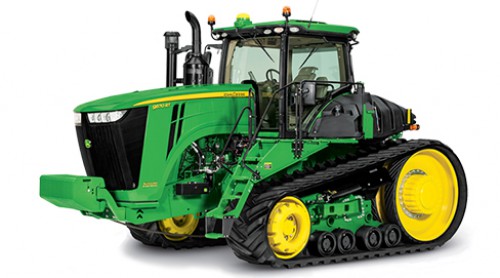

John Deere 9570RT

John Deere 9570RT for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

9R/9RT/9RX Series



  • Cummins 15.L
  • New and improved e18™ PowerShift Transmission
  • AirCushion Suspension System
  • New CommandView™ III cab



Manufacturer John Deere
Model 9570RT
Official Test
Nebraska Test number ---
Engine
Manufacturer Cummins
Engine family QSX
Aspiration Single Variable geometry turbocharger air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L) 14.9 L
  912 cu in.
Cylinder Liners Wet
Fuel tank capacity, US Gal. (L) (Open; Cab) ---
Standard 1324 L
  350 U.S. gal.
Optional ---
Underhood muffler ---
Performance
Advertised PTO hp (kW) @ Rated rpm 245 kW
  329 hp
Official PTO hp (kW) @ Rated rpm ---
@ Standard PTO @ Eng rpm ---
Maximum @ Eng rpm ---
Advertised Engine hp (kW) @ Rated speed 419 @ 2100 per ISO 97/68/EC kW
  570 @ 2100 per ISO 97/68/EC hp
Max Unballast Drwbr hp (kW) @ Eng rpm ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm) ---
Max Torque Rise (80% rtd spd) @ Eng rpm 38 @ 1600 percent
Maximum Torque Rise % (PTO) @ Eng rpm ---
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm ---
Standard PTO Speed @ Eng speed ---
Maximum PTO Power @ Eng rpm ---
Maximum Engine Power @ Eng rpm ---
Max Unballasted Drawbar Power @ Eng rpm ---
75% Load, Full Engine rpm (Unballasted) ---
75% Load @ Reduced rpm (Unballasted) ---
Transmission
Std. Transmission; Forward/Reverse e18™ 18-speed PowerShift 40 km/h
  25 mph
  18F, 6R with Efficiency Manager™
Opt. Transmission; Forward/Reverse ---
Reverser No
On-the-Go Shifting (Yes/No/Partial) Yes
Clutch; Wet/Dry Wet
Creeper ---
Power Take-Off (PTO)
Standard ---
Optional 45 mm
  1.75 in.
PTO Speeds @ Engine rpm ---
PTO Actuation ---
Hydraulics
Type Pressure and flow compensating closed-center
Pump Rated Output, GPM (L/min.) ---
Standard 220 L/min
  58 gpm
Optional 435 L/min
  115 gpm
Rated Flow @ One SCV, GPM (L/min.) Standard coupler: 140 L/min
37 gpm
12.7 mm
0.5 in.
Optional coupler: 159 L/min
42 gpm
19.0 mm
0.75 in.
Max Output @ SCV Couplers, GPM (L/min.) ---
Maximum Operating Pressure, psi (kPa) 20,000 kPa
  2900 psi
Maximum Hydraulic Power, hp (kW) ---
Hitch Draft Control Load Sense Type Electrohydraulic
Remote Control Valves Available Standard: four
Optional: five and six (factory)
Optional: seven and eight (field install)
Hitch Category (SAE Designation) 4N/Cat. 4
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. 6804 kg
  15,000 lb
OECD ---
Standard 6804 kg
  15,000 kg
Optional 9072 kg
  20,000 lb
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE) ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) ---
Standard ---
Optional ---
Sensing type Electrohydraulic
Joystick SCV control ---
Final Drive
Type Outboard planetary
Differential controls ---
Availability ---
Front ---
Front & Rear ---
Engage On-the-Go Rear Differential Lock ---
Axle Type ---
Brakes, Type and Control Hydraulic power, wet-disk, self adjusting
Operator Station
Rollover Protective Structure, OOS ---
Rigid - Foldable - Telescopic ---
Platform - Flat/Straddle ---
Gearshift Location - Console/Floor ---
Cab ---
Doors 1 left-hand
Platform - Flat/Straddle ---
dB(A) Rating ---
Seat Suspension System Air Suspension
2WD Dimensions
Wheelbase, in. (mm) ---
Front Tread Range, in. (mm) ---
Rear Tread Range, in. (mm) ---
Minimum Rear Tread Setting, in. (mm) ---
Front Axle Clearance, in. (mm) ---
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab ---
MFWD Dimensions
Wheelbase, in. (mm) ---
Front Tread Range, in. (mm) ---
Front Axle Clearance, in. (mm) ---
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Limited Slip Differential ---
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab ---
4WD Dimensions
Wheelbase, in. (mm) ---
Wheel Tread, Min. to Max. in. (mm) ---
Turning Radius w/o Brakes, ft (m) ---
Nebraska Test Unballasted w/Duals, lb (kg) ---
Unballasted Weight, lb (kg) ---
Standard Tires
2WD ---
Front ---
Rear ---
MFWD ---
Front ---
Rear ---
4WD ---
Track widths Standard: 762 mm
  30 in.
Miscellaneous
Country of Manufacture Waterloo, Iowa, USA
Ballasting Restrictions, lb (kg) Lesser of 24,494 kg
54,000 lb
or Tire Capacity
*Notes ---
