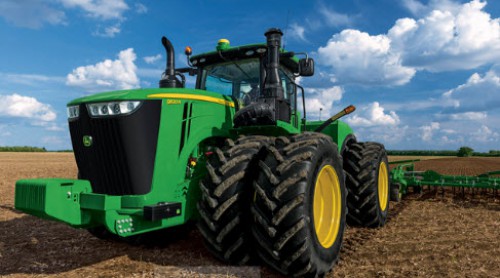

John Deere 9520R

John Deere 9520R for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

9R/9RT/9RX Series



  • John Deere PowerTech™ 13.5L PSS
  • New and improved e18™ PowerShift Transmission
  • New CommandView™ III cab
Manufacturer John Deere
Model 9520R
Official Test
Nebraska Test number ---
Engine
Manufacturer John Deere
Engine family PSS
Aspiration Dual Series Turbocharger w/fixed geometry first stage-variable geometry second stage - air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L) 13.5 L
 824 cu in.
Cylinder Liners ---
Fuel tank capacity, US Gal. (L) (Open; Cab) ---
Standard 1514 L
400 U.S. gal.
Optional ---
Underhood muffler ---
Performance
Advertised PTO hp (kW) @ Rated rpm 250 @ 1895 per SAE kW
335 @ 1895 per SAE hp
Official PTO hp (kW) @ Rated rpm ---
@ Standard PTO @ Eng rpm ---
Maximum @ Eng rpm ---
Advertised Engine hp (kW) @ Rated speed 382 @ 2100 per ISO 97/68/EC kW
520 @ 2100 per ISO 97/68/EC hp
Max Unballast Drwbr hp (kW) @ Eng rpm ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm) ---
Max Torque Rise (80% rtd spd) @ Eng rpm 38 @1600 percent
Maximum Torque Rise % (PTO) @ Eng rpm ---
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm ---
Standard PTO Speed @ Eng speed ---
Maximum PTO Power @ Eng rpm ---
Maximum Engine Power @ Eng rpm ---
Max Unballasted Drawbar Power @ Eng rpm ---
75% Load, Full Engine rpm (Unballasted) ---
75% Load @ Reduced rpm (Unballasted) ---
Transmission
Std. Transmission; Forward/Reverse e18™ 18-speed PowerShift 40 km/h
25 mph
18F, 6R with Efficiency Manager™
Opt. Transmission; Forward/Reverse ---
Reverser No
On-the-Go Shifting (Yes/No/Partial) Yes
Clutch; Wet/Dry Wet
Creeper No
Power Take-Off (PTO)
Standard ---
Optional 45 mm
1.75 in.
PTO Speeds @ Engine rpm ---
PTO Actuation Electronic
Hydraulics
Type Pressure and flow compensating closed-center
Pump Rated Output, GPM (L/min.) ---
Standard 220 L/min
58 gpm
Optional 435 L/min
115 gpm
Rated Flow @ One SCV, GPM (L/min.) Standard coupler: 140 L/min
37 gpm
12.7 mm
0.5 in.
Optional coupler: 159 L/min
42 gpm
19.0 mm
0.75 in.
Max Output @ SCV Couplers, GPM (L/min.) ---
Maximum Operating Pressure, psi (kPa) 20,000 kPa
2900 psi
Maximum Hydraulic Power, hp (kW) ---
Hitch Draft Control Load Sense Type Electrohydraulic
Remote Control Valves Available Standard: four
Optional: five and six (factory)
Optional: seven and eight (field install)
Hitch Category (SAE Designation) 4N/Cat. 3
4N/Cat. 4
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. 6804 kg
15,000 lb
OECD ---
Standard 6804 kg
15,000 lb
Optional 9072 kg
20,000 lb
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE) ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) ---
Standard ---
Optional ---
Sensing type Electrohydraulic
Joystick SCV control ---
Final Drive
Type Inboard planetary
Differential controls Full-locking electrohydraulic
Availability ---
Front ---
Front & Rear Standard
Engage On-the-Go Rear Differential Lock Yes
Axle Type Double reduction
Brakes, Type and Control Hydraulic wet disk, self-adjusting on front and rear axle
Operator Station
Rollover Protective Structure, OOS ---
Rigid - Foldable - Telescopic ---
Platform - Flat/Straddle ---
Gearshift Location - Console/Floor ---
Cab ---
Doors 1 left-hand
Platform - Flat/Straddle ---
dB(A) Rating ---
Seat Suspension System Standard: Air
Optional: Active Seat™
2WD Dimensions
Wheelbase, in. (mm) ---
Front Tread Range, in. (mm) ---
Rear Tread Range, in. (mm) ---
Minimum Rear Tread Setting, in. (mm) ---
Front Axle Clearance, in. (mm) ---
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab ---
MFWD Dimensions
Wheelbase, in. (mm) ---
Front Tread Range, in. (mm) ---
Front Axle Clearance, in. (mm) ---
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Limited Slip Differential ---
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab ---
4WD Dimensions
Wheelbase, in. (mm) 3912 mm
154 in.
Wheel Tread, Min. to Max. in. (mm) ---
Turning Radius w/o Brakes, ft (m) 6.04 m
19.8 ft
Nebraska Test Unballasted w/Duals, lb (kg) ---
Unballasted Weight, lb (kg) ---
Standard Tires
2WD ---
Front ---
Rear ---
MFWD ---
Front ---
Rear ---
4WD 800/70R38 in. 173A8 R1W radial in dual wheel configuration
Track widths ---
Miscellaneous
Country of Manufacture Waterloo, Iowa, USA
Ballasting Restrictions, lb (kg) Lesser of 27,216 kg
60,000 lb
or Tire Capacity
*Notes ---
