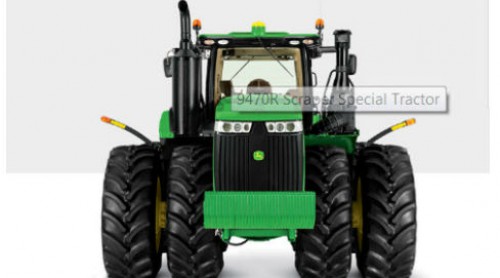

John Deere 9470R Scraper Special

John Deere 9470R Scraper Special for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

9R/9RT/9RX Series Scraper-Special


  • John Deere PowerTech™ 13.5L PSS
  • New and improved e18™ PowerShift Transmission
  • New CommandView™ III cab
  • New HydraCushion™ Suspension option
Manufacturer John Deere
Model 9470R Scraper Special
Official Test
Nebraska Test number ---
Manufacturer John Deere
Engine family PSS
Aspiration Dual Series Turbocharger w/fixed geometry first stage-variable geometry second stage - air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L) 13.5 L
  824 cu in.
Cylinder Liners ---
Fuel tank capacity, US Gal. (L) (Open; Cab) ---
Standard 1514 L
  400 U.S. gal.
Optional ---
Underhood muffler ---
Advertised PTO hp (kW) @ Rated rpm ---
Official PTO hp (kW) @ Rated rpm ---
@ Standard PTO @ Eng rpm ---
Maximum @ Eng rpm ---
Advertised Engine hp (kW) @ Rated speed 346 @ 2100 per ISO 97/68/EC kW
  470 @ 2100 per ISO 97/68/EC hp
Max Unballast Drwbr hp (kW) @ Eng rpm ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm) ---
Max Torque Rise (80% rtd spd) @ Eng rpm 38 @1600 rpm percent
Maximum Torque Rise % (PTO) @ Eng rpm ---
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm ---
Standard PTO Speed @ Eng speed ---
Maximum PTO Power @ Eng rpm ---
Maximum Engine Power @ Eng rpm ---
Max Unballasted Drawbar Power @ Eng rpm ---
75% Load, Full Engine rpm (Unballasted) ---
75% Load @ Reduced rpm (Unballasted) ---
Std. Transmission; Forward/Reverse e18™ 18-speed PowerShift 40 km/h
25 mph18F, 6R with Efficiency Manager™
Opt. Transmission; Forward/Reverse ---
Reverser No
On-the-Go Shifting (Yes/No/Partial) Yes
Clutch; Wet/Dry Wet
Creeper ---
