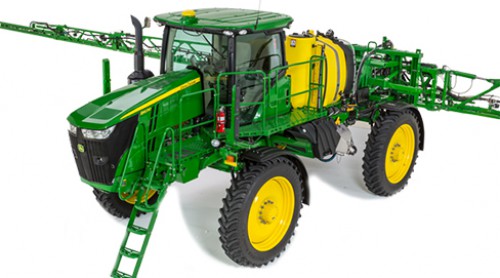

John Deere R4030

John Deere R4030 for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

R4030



  • Smooth, stable ride enables operator comfort and better maneuverability
  • 36 m (120 ft) boom with swing link suspension eliminates additional passes through the field
  • Dry spinner spreader compatibility increases versatility by allowing the conversion of a machine with a wet solution system into a dry nutrient applicator with a 5.6 cu. m (200 cu ft) carrying capacity
  • Solution Command System (SCS) allows for automation at the fill station
  • Plumbing efficiencies lead to increased application rates, additional versatility as well as faster loading times
  • Direct injection allows operators to manage their chemical risks
  •  CommandView™ II PLUS cab maintains operator comfort
  • ExactApply™ nozzle control increases precision application to maximize yield potential
Model R4030
Engine
Peak rated power 209 kW
  280 engine hp
Emissions Final Tier 4
Number of cylinders 6
Displacement 6.8 L
  415 cu in.
Alternator 200 amp
Fuel tank capacity 492.1 L
  130 gal.
Diesel exhaust fluid (DEF) tank capacity 29.5 L
  7.8 gal.
Make
Solution system
Capacity 3000 L
  800 gal.
Tank material Stainless steel or polyethylene
Rinse tank capacity 454.2 L
  120 gal.
Quick fill size 7.6 cm
  3 in.
Automatic section control John Deere Section Control (optional)
Solution system control Automatic (optional) or manual
Fill location Side fill, Front fill (optional)
Chemical injection method Direct injection (optional)
Chemical eductor Stainless steel (optional)
Chemical eductor capacity (size) 32 L
  8.5 gal.
Flow meter size 2 in.
Suction strainer 20 mesh
Pressure strainer 50 mesh
Boom strainer 80 mesh
Display
Rate control make
Boom
Boom length options 27.4, 30.4, 36.5 m
  90, 100, 120 ft
Automatic boom height BoomTrac Pro -5 sensor (optional)
Plumbing material Stainless steel (Polyethylene optional)
Ground height adjustment 50 - 245 cm
Breakaway width full boom standard, tip breakaway: 15-ft (90-m) boom, 20-ft (100-m) boom, 24-ft (120-m) boom
Boom sections 120 boom, 11; 100 boom, 9 ; 90 boom, 7 ft
Drivetrain
Type Hydrostatic
Drive Full-time 4WD
Shifting Electrohydraulic
Hydraulic reservoir capacity 98 L
  26 gal.
Spray speed range 0-32.2 km/h
  0-20 mph
Transport speed, maximum 48.3 km/h
  30 mph
Chassis
Dry compatible Yes - 200 cu ft
Suspension Dual strut independent wheel air-ride suspension
Crop clearance with standard tires 152 cm
  60 in.
Front tires -----
Rear tires ---
Flotation tires 520/85R38, 620/70R38 (field installed only)
Hydraulic tread adjust Standard
Wheel tread spacing 305-406 cm
  120-160 in.
Wheel base 4300 mm
  169.3 in.
Turning radius 8.7 m
  28.5 ft
Parking brake Spring-engaged, hydraulic-disengaged wet- disk pack
Primary brakes Hydrostatic
Ladder raise/lower Automatic
Total weight with 80-ft boom N/A
Total weight with 90-ft boom 13,550 kg
  29, 810 lb
Total weight with 100-ft boom 13, 630 kg
  29,986 lb
Total weight with 120-ft boom 13, 890 kg
  30,558 lb
Options
Air compressor Onboard air (standard)
Foam marker capacity 5.7 L
  1.5 air injection foamer gal.
Remote service tools
