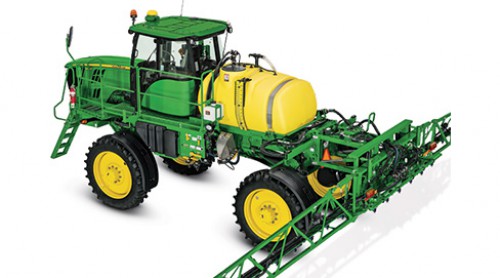

John Deere R4023

John Deere R4023 for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

R4023



  • Boom structure built with high-strength square tube
  • Enhance management skills with JDLink™ Connect system
  • Optimal weight distribution means operator can get into field earlier
  • Provides 129-kW (173-hp) turbocharged PowerTech™ PSS 4.5L Tier 4 diesel engine
  • Wide or narrow axle available to fit a variety of cropping row widths
  • Huck®-bolted C-channel frame lays the foundation for a smooth ride
  • Soft Shock option for rough or uneven terrain applications
  • Air bag/shock suspended axle provides a comfortable ride even in rough conditions
Manufacturer John Deere
Model R4023
Engine
Peak rated power 129 kW
173 hp
Emissions Final Tier 4
Number of cylinders Six
Displacement 4.5 L
275 cu in.
Alternator ---
Fuel tank capacity 310 L
82 gal.
Diesel exhaust fluid (DEF) tank capacity 17 L
4.5 gal.
Make
Solution system
Capacity 2300 L
600 gal.
Tank material Polyethylene
Rinse tank capacity 265 L
70 gal.
Quick fill size 5.1 cm
2 in.
Automatic section control John Deere Section Control (optional)
Solution system control Manual
Fill location Side fill
Chemical injection method ---
Chemical eductor Stainless steel
Chemical eductor capacity (size) 20 L
5.5 gal.
Flow meter size 5.1 cm
2 in.
Suction strainer 16 mesh
Pressure strainer 50 mesh
Boom strainer 80 mesh
Display
Rate control make
Boom
Boom length options 18 or 24 m
60 or 80 ft
Automatic boom height BoomTrac Pro - 3 sensor (optional)
Plumbing material Polypropylene
Ground height adjustment 38-193 cm
15-76 in.
Breakaway width 1.83 m
6 ft
Boom sections Five
Drivetrain
Type Hydrostatic tandem Saur pumps
Pump size is tandem 75 cc
Drive Full-time four-wheel drive (4WD)
Shifting Electrohydraulic (on the go)
Hydraulic reservoir capacity 61 L
16 gal.
Spray speed range 0-32 km/h
0-20 mph
Transport speed, maximum 43 km/h
27 mph
Chassis
Dry compatible No
Suspension Air bar/shock suspended
Crop clearance with standard tires Narrow - 112 cm
44 in.
Wide - 127 cm
50 in.
Front tires IF320/80R42, 380/R80R38, IF380/80R38, 420/85R34
Rear tires IF320/80R42, 380/R80R38, IF380/80R38, 420/85R35
Flotation tires ---
Hydraulic tread adjust Manual standard
Hydraulic optional (wide only)
Wheel tread spacing Narrow - 183-224 cm
72-88 in.
Wide - 229-305 cm
90-120 in.
Wheel base 373 cm
147 in.
Turning radius 4.9 m
16 ft
Parking brake Hydraulic release
Primary brakes Hydrostatic
Ladder raise/lower Hydraulic
Total weight with 80-ft boom 8,240 kg
18,165 lb
Total weight with 90-ft boom ---
Total weight with 100-ft boom ---
Total weight with 120-ft boom ---
Options
Air compressor Standard
Foam marker capacity Direct injection optional
Date collected
Remote service tools
