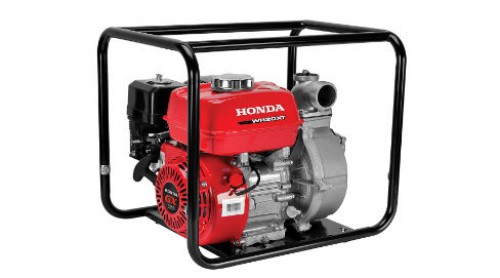

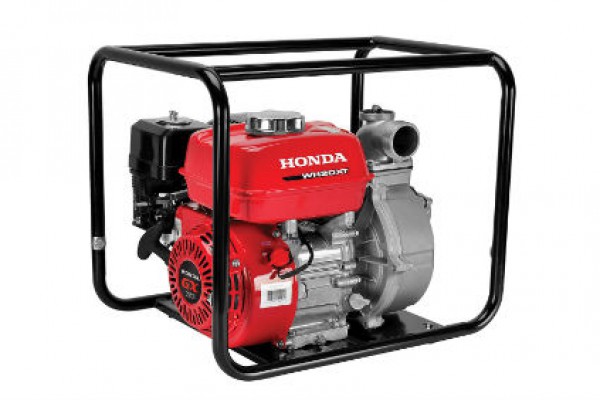

Honda WH20

Honda WH20 for sale at LandPro Equipment; NY & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Oakfield, Savannah, Springville, NY, and Edinboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

De-Watering



High pressure - ideal for sprinklers or nozzles

With a maximum pressure of 64 psi, the WH20 is designed for a variety of applications requiring high pressure.

Easy starting Honda OHV commercial engine

The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.

119 gal./min capacity

Cast iron volute and impeller

The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.

Heavy duty full frame protection

Protects the pump, while offering a convenient tie down location for transport.

Lightweight aluminum case

Engine GX160
Displacement 163cc
Bore and stroke 2.7" x 1.8"
Compression Ratio 9.0:1
Oil Alert N/A
Pump type High Pressure, Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller Cast Iron
Mechanical Seal (Pump case / impeller) Carbon/Ceramic
Priming time 80 sec. at 16.4 ft.
Drive system Direct
Discharge capacity 119 gals./min.
Suction port diameter 2" NPT
Discharge port diameter 2" NPT
Total head lift 148 ft.
Suction head lift 26 ft.
Maximum pressure 64 psi
Solids handling N/A
Dimensions (LxWxH) 20.5" x 15.7" x 18.1"
Dry weight 60 lb.
Fuel Capacity 0.82 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YB7-702
